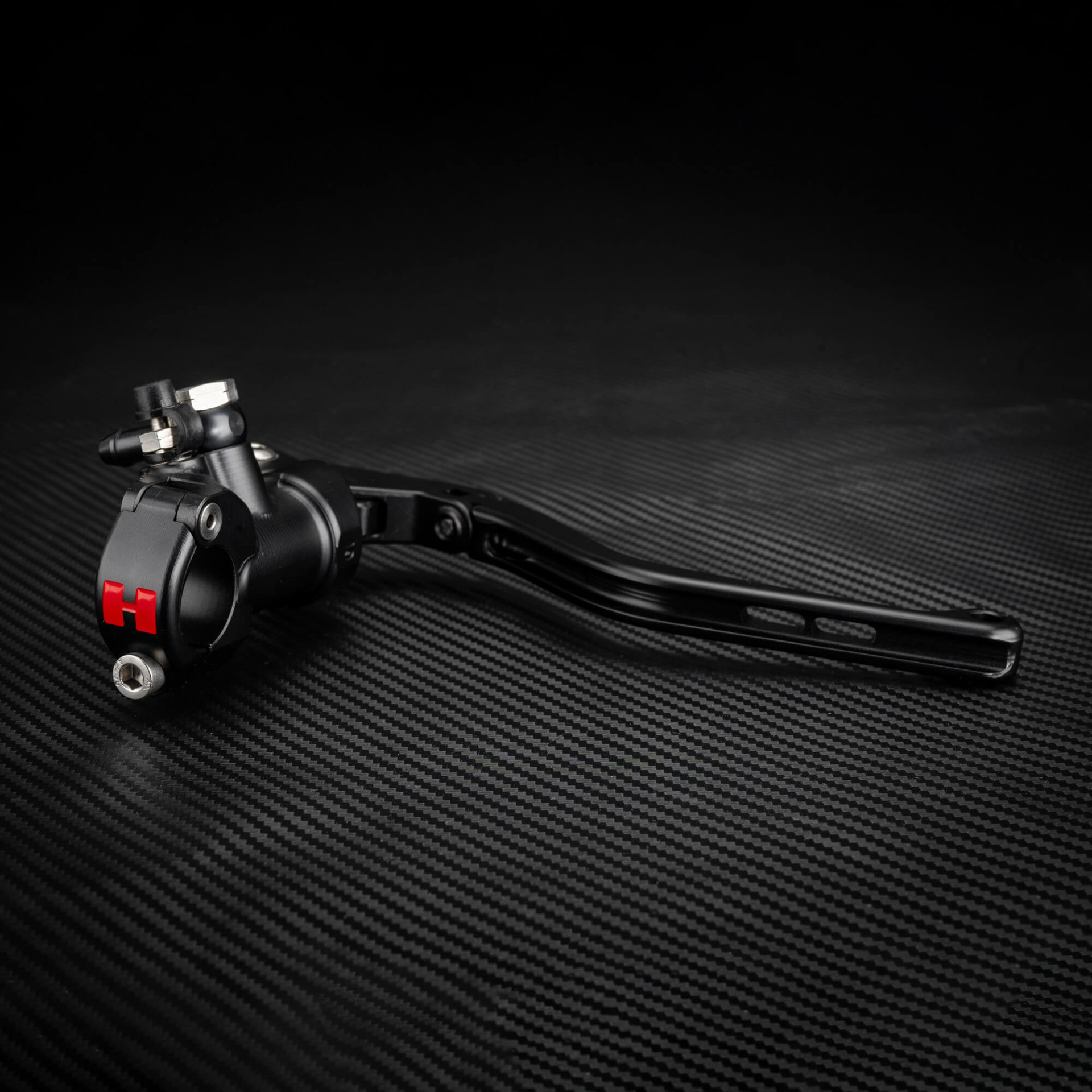

HEL – V2 Billet Radial Master Cylinder

Description

After incredible amounts of in-house, on road and on track R&D we are very pleased to announce the launch of our latest V2 CNC Machined Radial Brake Master Cylinder.

We manufacture all metal parts of the brake master cylinder (including levers) in-house on our suite of Brother and Star CNC machines from solid billets of 6082-T6 aluminium.

This new version really packs a punch with new upgrades and design modifications to make this the most complete master cylinder we have ever made.

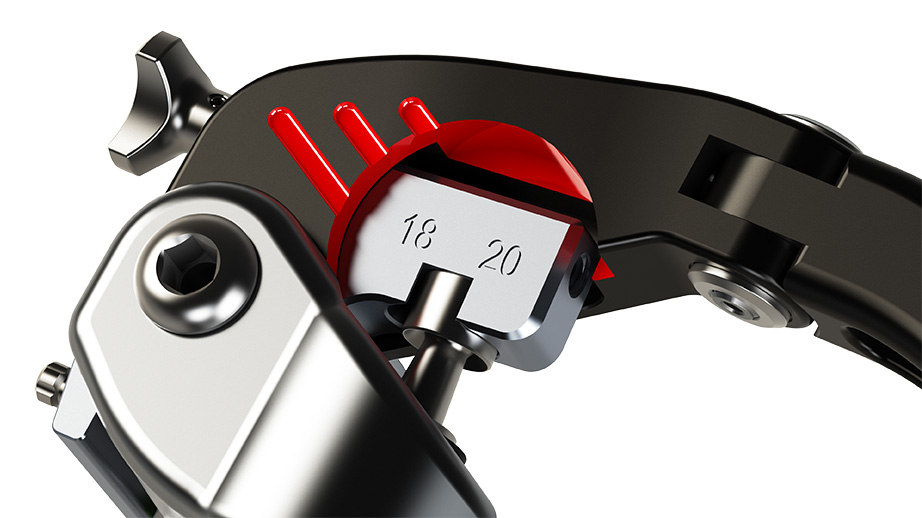

This latest incarnation comes with the ability, as with previous versions, to select ratios as shown in this cut away image:

They are available in both 19mm for brake or clutch and 16mm brake or clutch and all are available in either 22mm or 25mm (1″) bar diameter sizes.

19mm to suit twin brake discs 18×19, 20×19 Ratios

16mm to suit single brake disc 15×16 and 17×16 Ratios

We have also included a microswitch (which can be removed if not needed) designed specifically to fit our master cylinder giving the ability to connect to the brake light with ease, perfect for the road!

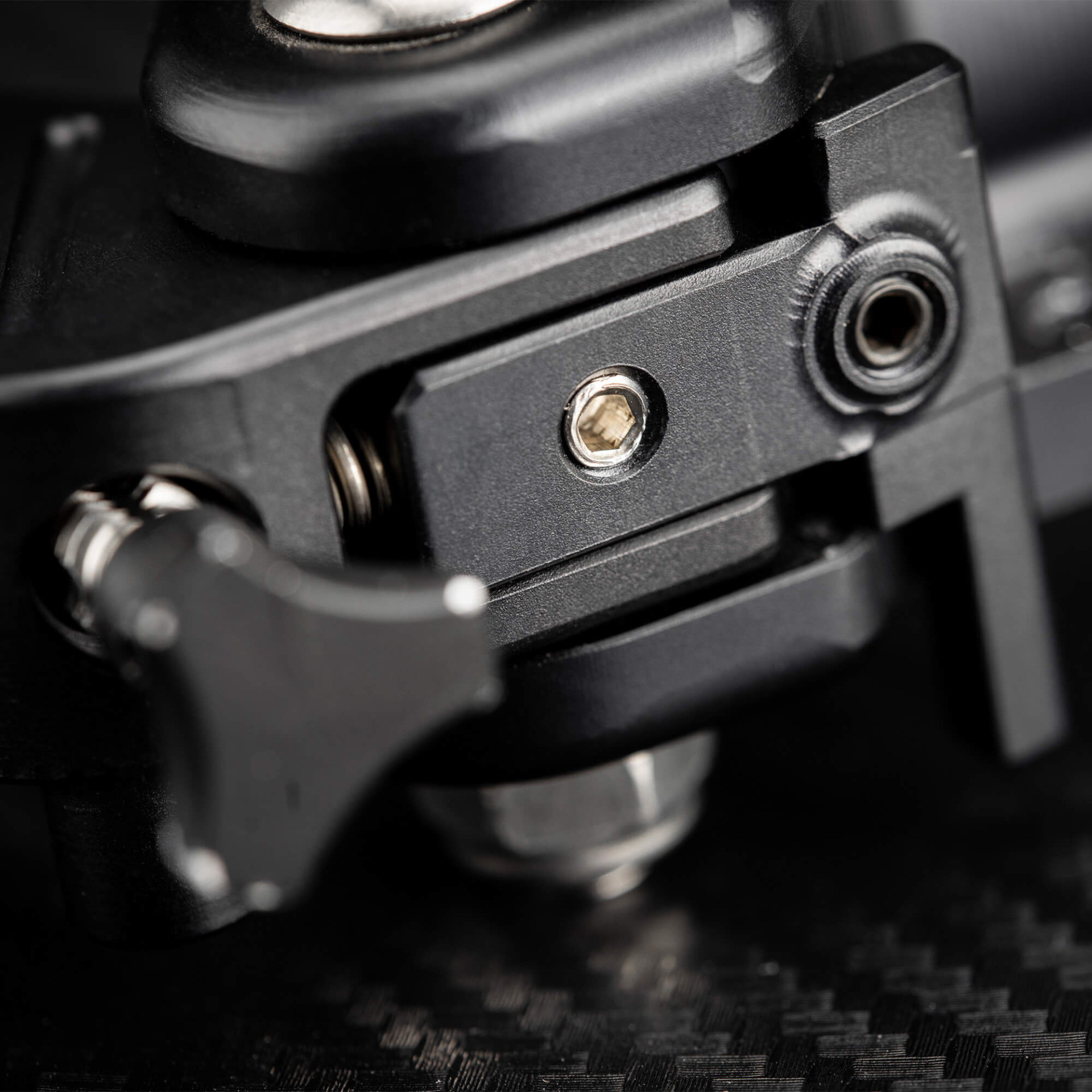

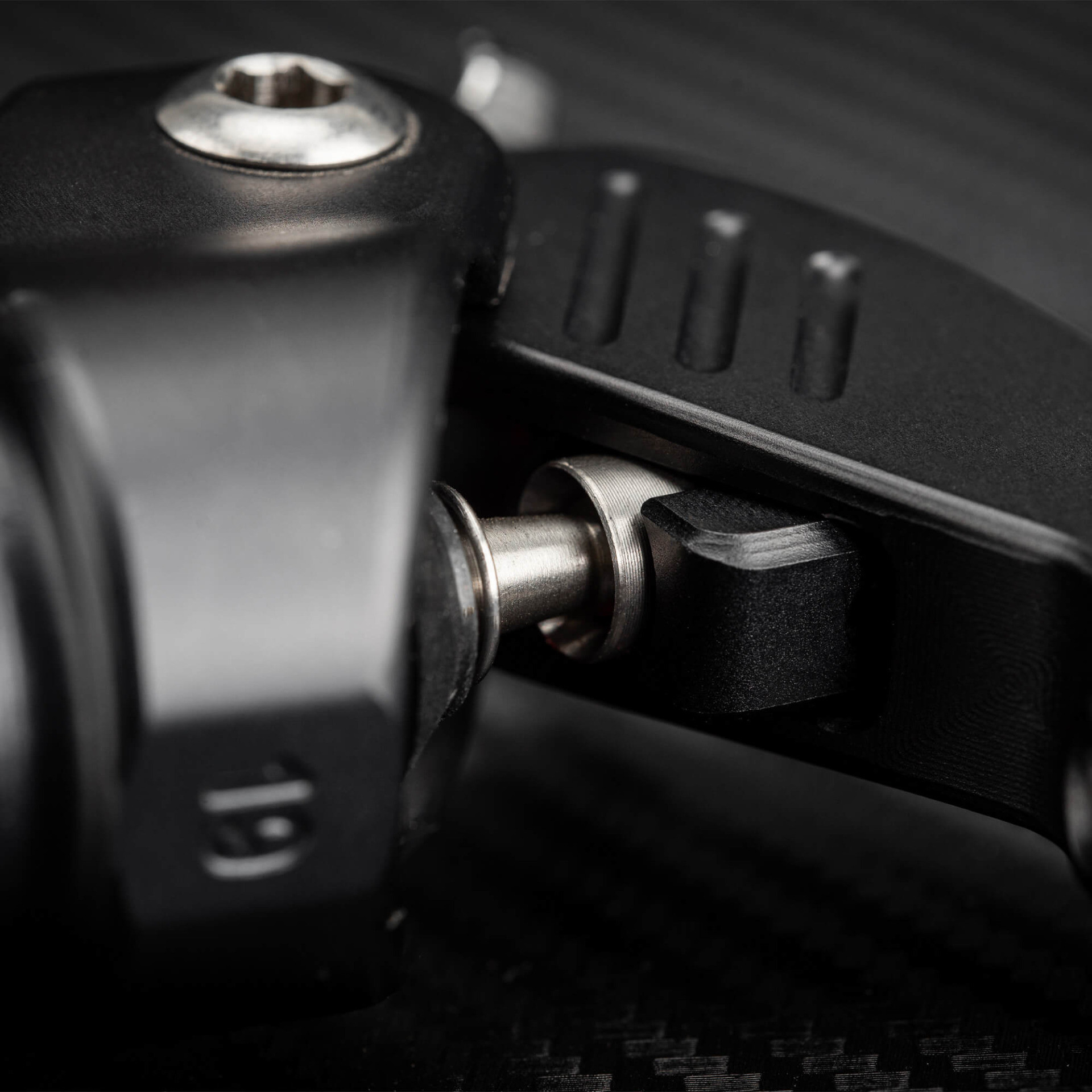

The V2 also has our new three bladed span adjuster – easy to use with gloves and we have added the ability to alter initial bite point along with a choice of three lever lengths:

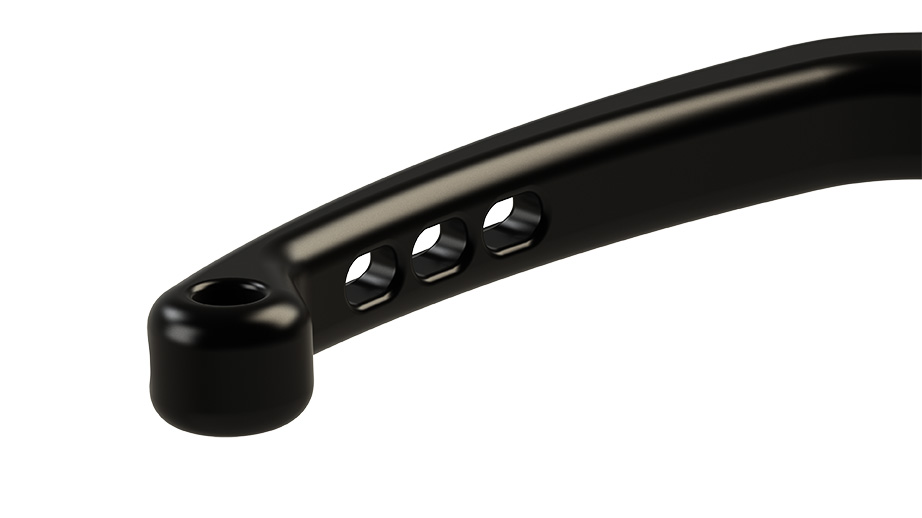

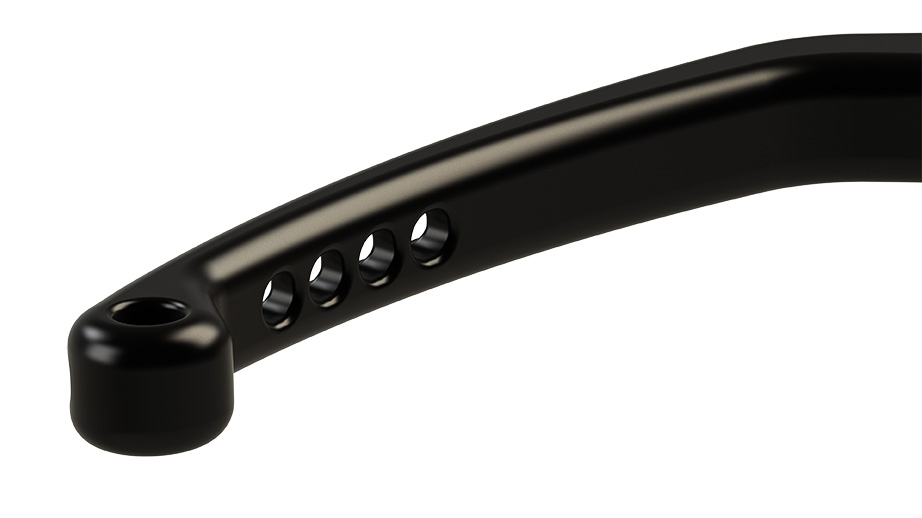

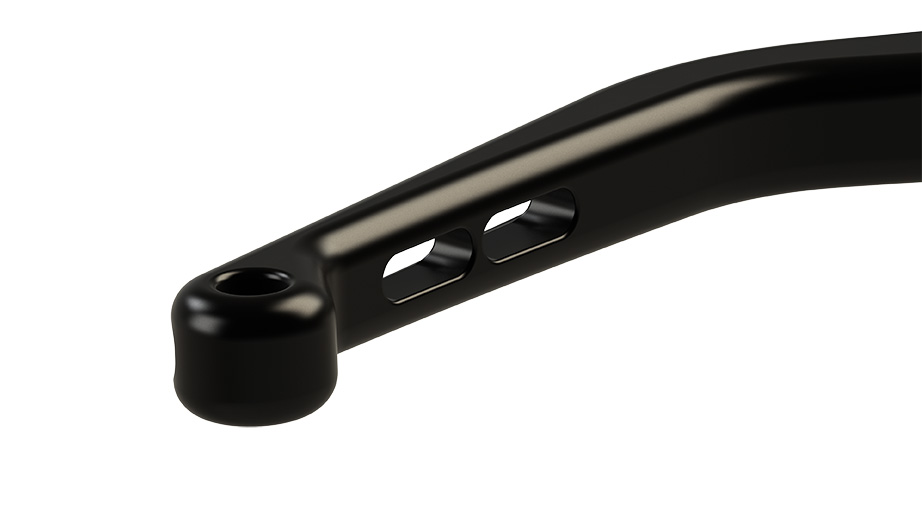

They also feature either a single drag hole in the blade for 120mm, two holes for 130mm and three holes for 140mm meaning you can easily request spare levers if required.

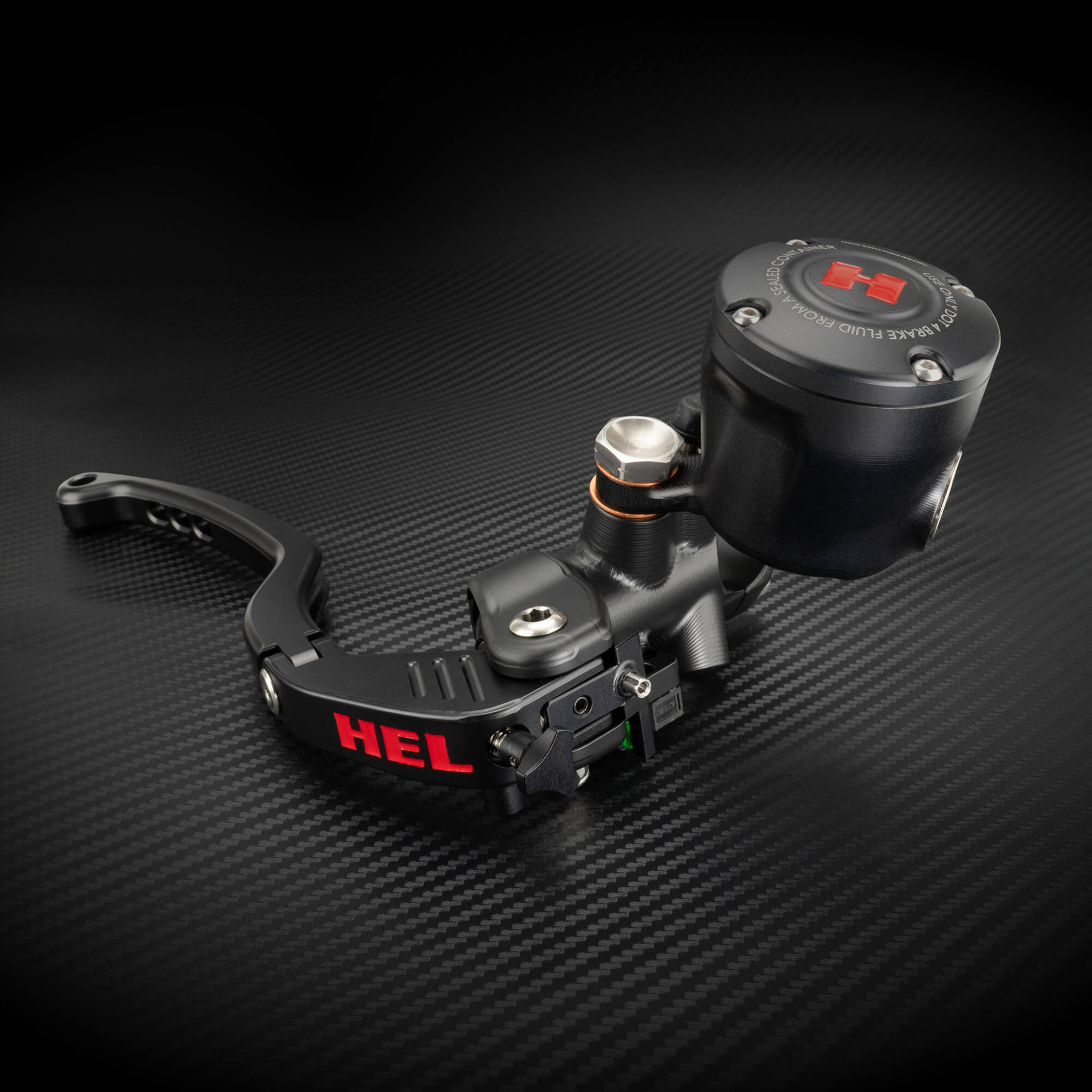

This new modern design uses a spigot for the reservoir pot (or banjo for 90 degree take off) and has also been designed to pair seamlessly with our new CNC billet reservoir pots (see HERE) .
